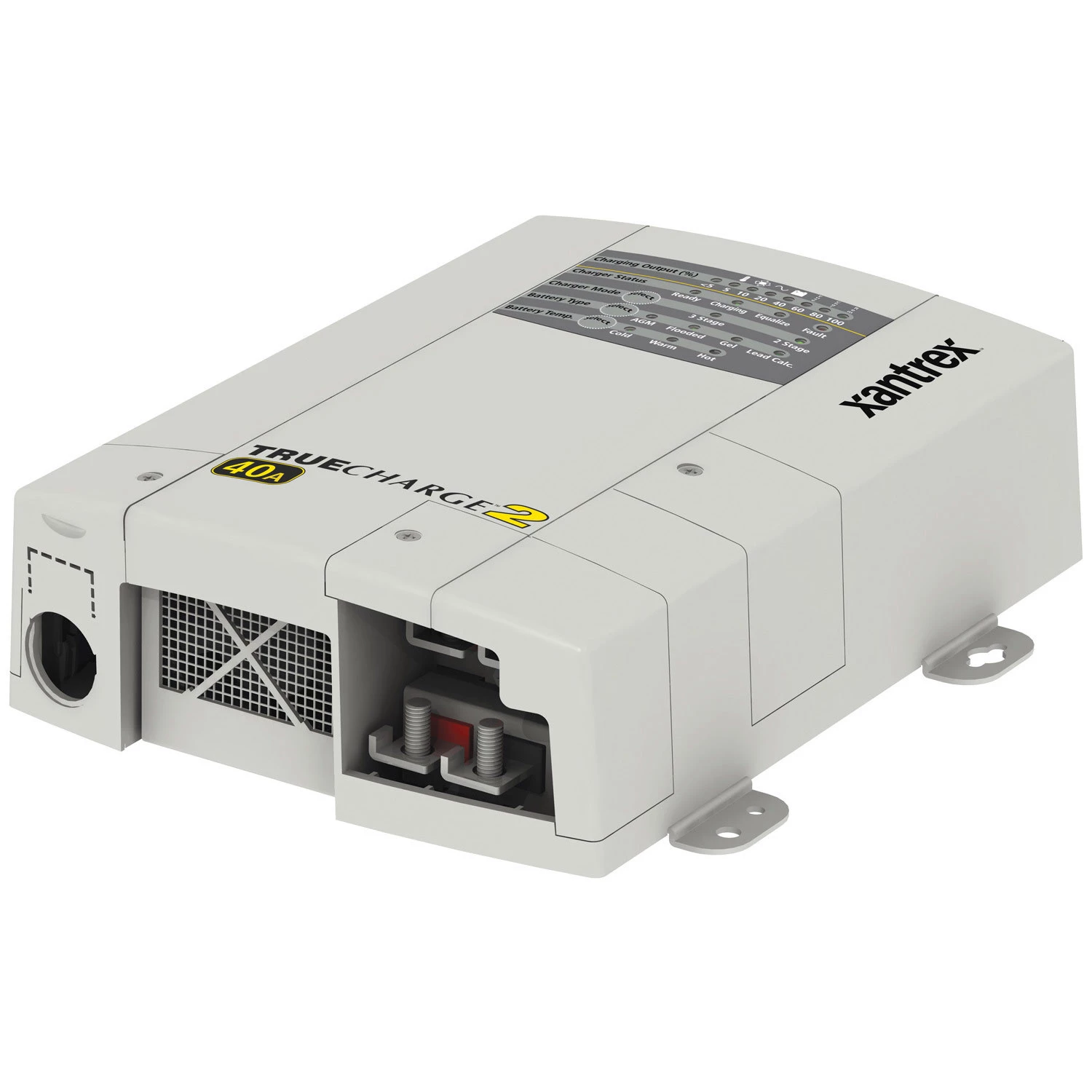

XANTREX Marine Battery Chargers TRUECharge2 Battery Chargers

Improved top selling charger with more versatility.

The TRUECharge2 is the next generation of the popular TRUECharge line and builds on a proven design and features. The evolution has made these chargers smaller and lighter and they can be installed in a greater number of positions, thanks to their drip-proof design. Designed for commercial and marine use, these chargers are highly versatile and offer a parallel stacking feature, allowing two chargers to work together to combine the output current. Ideal for large battery banks, this combined output can be as much as 120A. Xantrex uses power factor correction to deliver peak charging capacity using less or inconsistent AC power.

A microprocessor controls the three stage charging profile to extend battery life by adjusting charge rates to efficiently and safely charge batteries. Built-in protection against surges and spikes on the AC power line provides outstanding low electrical interference. Other safety features include battery overcharging, over-temperature, DC over-voltage and reverse polarity protections.

For a space saving solution that can grow with your electrical system, consider the Xantrex TRUECharge2 for your charging needs.

Features:

• Compatible with flooded lead-acid and AGM batteries
• Next generation of TRUECharge battery chargers; smaller and lighter than previous models
• Drip-proof design allows charger to be installed in multiple positions
• Parallel stacking feature allows two TRUECharge2 chargers to be combined to provide increased output (not including 10A model)
• Automatically adjusts to available AC service for use globally
• Settable to two or three stage charging profiles
• Uses power factor correction for efficient charging that requires less AC power
• Built in charge profile to charge deeply discharged batteries
• Battery equalization feature to prevent stratification
• Temperature compensation helps ensure proper charge in extreme temperatures (compatible with Remote Battery Sensor for additional features, Xantrex part no. 808-0232)
• AC and DC wiring compartments allow open access for an easier installation
• Integrated display provides system data and control.
• Compatible with optional remote panel to add convenience and additional features not available on built in display.(Xantrex part number 808-8040-01)
• Safety Features: Over temp, shutdown, overload protection, short circuit/surge protection, reverse polarity protection
• Voltage output:
  • 12V: Charge 14.2V-15.5V; Float 13.4V-13.8V; Equalize 16V
  • 24V: Charge 28.4V-31.0V; Float 26.8V-27.6V: Equalize 32V
