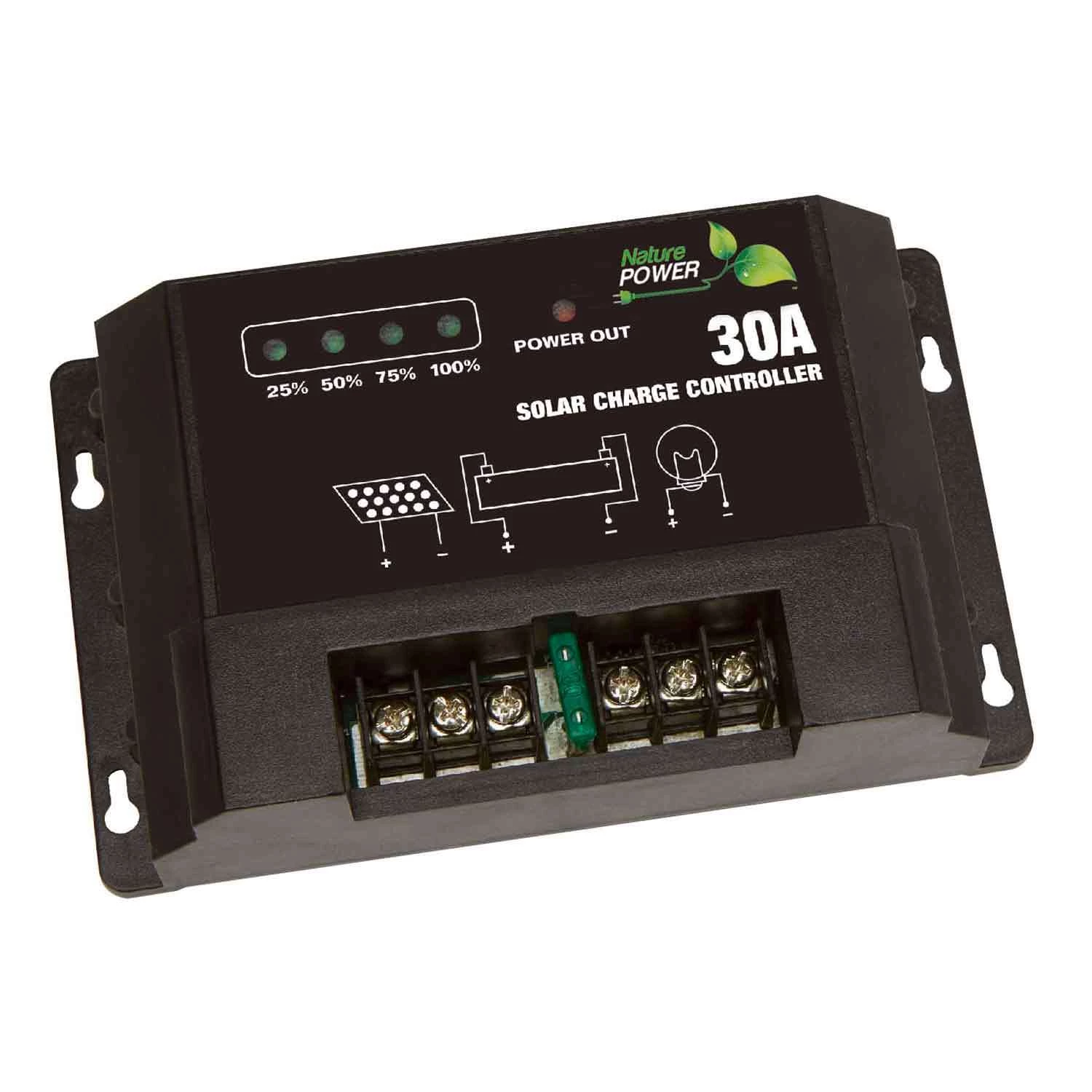

NATURE POWER Marine Solar Panels 30A Solar Charge Controller

This 30-Amp Charge Controller regulates the current from one or several solar panels to avoid overcharging 12-volt batteries.

PWM-Pulse Width Modulation technology provides higher charging efficiency and maintains a higher battery reserve than standard charge controllers

Key Features

• Use with any 12 Volt or 24 Volt system
• Loads current and battery voltage in five-second intervals
• Handles up to 525 watts of solar array
• Regulated PWM output to prevent overcharging
• Protects battery from high voltage surges, short circuit, low voltage discharging
• Features overcharge protection, easy access front connection terminals and LED charge status indicators
• Discharging Current: 30A
• Charging Current: 30A
• Overcharge Protection: 14.4V±1%
• Starting Voltage 12.3V
• Over discharge: Cut-off 10.7V±1%, Resume 12.6±1%
• No load current: ≤10mA
• Display: LED
• Operating temperature: -13ºF to 131 ºF (-25℃ to 55℃)
• Altitude: Below 3.4 miles (5500m) [above 1.24 miles (>2000m) causes reduced power]
